Futaba 10PX 10-Channel 2.4GHz Super Response Digital Proportional Radio System, receiver R404SBSE or R404SBS
YOUR T10PX INCLUDES THE FOLLOWING COMPONENTS:

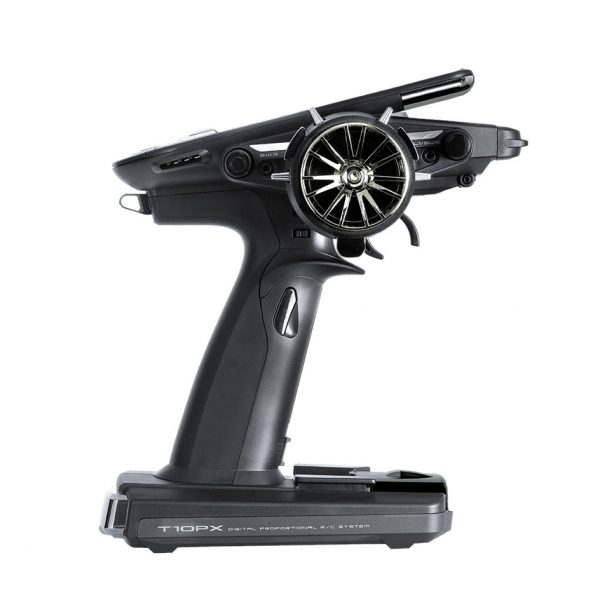

T10PX Transmitter
R404SBS OR R404SBS-E Receiver x2
Dry Battery Holder
Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included
Wheel adapter 32 deg
Wheel Angle spacer 5 deg
Large diameter steering wheel
Trigger guard (Lx1/Rx1)
Grip rubber x1
Blind paddle x2
Hex wrench
Short manual
Features:
Full color touch screen LCD
F-4G system & telemetry
10 channels
T-FHSS MINIZ system
Update-able software
Model memory for 40 models
Paddle switch + bottom switch + 3 position switch
Lipo battery can be used
Brake mixing for large cars
Steering mixing
4WS mixing for crawlers and other 4WS type
Dual ESCs mixing for crawlers
Gyro mixing
Tank mixing
CPS mixing
S.BUS servo
MC-Link
Throttle speed
Steering speed
Non-telemetry LED
Dial select function
Switch select function
Wheel & Trigger position can be changed
Rubber Grip
Trim/dial lock functions
Left-handed support
Vibrator built into the grip
USB Port
WHEEL SYSTEM, 10 CHANNELS (F-4G SYSTEM), 4 CHANNELS WITH TFHSS-SR, T-FHSS SYSTEM
TRANSMITTING FREQUENCIES:
2.4 GHz band/ -Transmitting RF power output: 100 mW EIRP
PROTOCOLS:
T-FHSS-SR/T-FHSS/S-FHSS/F-4G
POWER REQUIREMENT:
LiPo – NLF2F2000B (7.4 V)
LiFe – FT2F1700BV2 (6.6 V)
CURRENT DRAIN:
350 mA or less (When the T-FHSS, Vibration off, back lighting on)
TRANSMITTING ANTENNA:
1/2λ dipole
4.3 INCH BACKLIT COLOR TFT LIQUID CRYSTAL TOUCH PANEL*
*When you turn on your 10PX, bright dots may appear on your screen display. Your display contains an extremely large number of TFT and is manufactured using high-precision technology. Any bright dots that may appear on your display are intrinsic of the TFT manufacturing technology.
