Hobbywing 30110000 QuicRun WP 16BL30 1/16 & 1/18
The QuicRun WP 16BL30 brushless sensorless ESC is specially designed for new beginners and intermediate modelers. This speed controller is applicable to all-weather sport of 1/18th, 1/16th scale touring cars, buggies, trucks, and monster trucks.
Reliable hardware combined with advanced software technology allows the QUICRUN WP-16BL30 to not only provide high power output but also overload protection of the ESC circuit.

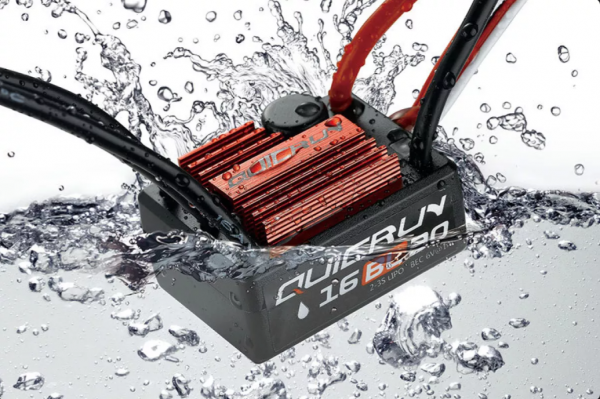

The waterproof and dust-proof design allows the QUICRUN WP-16BL30 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
Features
- High Reliability & Durability
- Efficient Cooling System
- Easy Operation
- Applicable to All Weather Conditions
- Single-button Programming & Factory Reset
Specifications
- Scale: 1/16th & 1/18th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: Yes
- Cont./Peak Current: 30A/180A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Linear Mode:6V/1AA

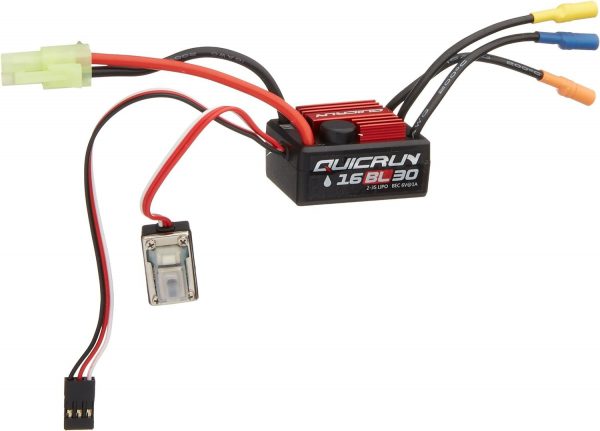

- Input Wires: Red-16AWG-75mm*1/Black-16AWG-75mm*1
- Output Wires: Black-16AWG-75mm*3
- Input Connectors: Small-sized TAMIYA Connector
- Output Connecotors: 3.5 Gold Connector (Female)
- Size: 36.0×28.0x16.0mm
- Weight: 38g
| For Motor Type: | -Brushless |
| Max Voltage: | -11.1 |
| Continuous Amps: | -30 |
| Motor Connectors: | -3.5mm Bullet |
| Battery Connector: | -Mini Tamiya |
| LiPo Cut-off: | -Yes |
| Programmable: | -Yes |
| Waterproof Design: | -Yes |
| Cooling Method: | -Air |
| BEC Voltage: | -6 |
| Dual Motor: | -No |
