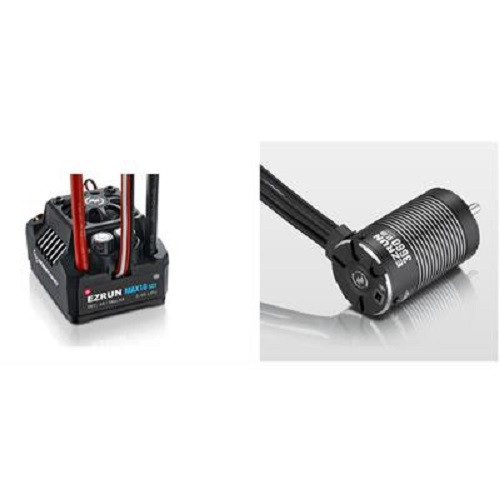

HobbyWing 38010200 COMBO-MAX10 SCT-3660SL-3200KV
Wide Applicability
This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.
Type
Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Waterproof – Yes
Specifications
Cont./Peak Current – 120A/760A
Input – 2-4S LiPo/6-12 Cells NiMH
BEC Output – Switch Mode:6V/7.4V,3A
Wires & Connectors
Input Wires – Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires – Black-12AWG-200mm*3
Input Connectors – No
Output Connecotors – 4.0 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
Size – 25.0×25.0x10.0mm
Voltage Range – 5-7.4V
Powered by – Powered by BEC
ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – FAN/Program Port
Firmware
Firmware Upgrade – Supported
Size & Weight
Size – 49.0×39.5×34.7mm
Weight – 105g
Application
Motors – SL BL Motors/SD BL Motors(only in SL mode)
Vehicles – 1/10thSCTs/Truck/Monster Truck
KV Rating/T Count – 2S LiPo:KV=6000;3S LiPo:KV=4000;4S LiPo:KV=3000(36XX Series of Motors
