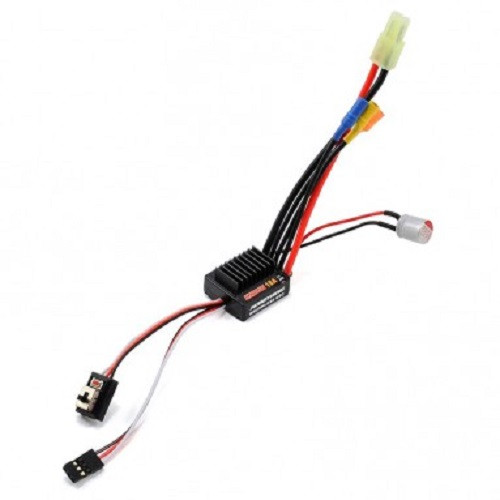

Hobbywing 81010020 EZRUN 18A SL BRUSHLESS ESC
This is Hobbywing EZRUN 18A SL Sensorless Brushless ESC For 1/16 1/18 RC.
Feature:
-
For: 1/16 1/18 RC
-
Color: Black
-
Compatible with sensorless brushless motors.
-
High quality components, big current endurance.
-
Excellent start-up, acceleration and linearity features.
-
Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
-
Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
-
Internal timing can be changed easily to make the ESC suitable for various of motors.
-
Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
-
ESC firmware can be updated through the USB adapter in the LCD Program Box.
Specification:
-
Output: Continuous 18A, burst 50A
-
Input: 4-9 cells NiMH/NiCd or 2-3S LiPo
-
BEC: 6V/1A (Linear mode built-in BEC)
-
Resistance: 0.01 Ohm
-
Motor Supported: Sensorless Brushless Motor
-
Suitable Motor: With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road≥12T, Off-Road≥8T / With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road≥18T, Off-Road≥24T
-
Cooling Fan: Not included
-
Size: 31.5mm(L) x 27.5mm(W) x 15mm(H)
-
Weight: 19g (Without wires)
Include:
-
Hobbywing EZRUN 18A SL Sensorless Brushless ESC (1 pc)
