OMG LP-09CF-BK LP Coreless 7.4V 0.082sec 10.5kg (Black/Red/Violet)

RM228.00

OMG LP-09CF-BK LP Coreless 7.4V 0.082sec 10.5kg (Black/Red/Violet)

SKU: OMG-LP-09CF-BK Category:

OMG LP-09CF-BK LP Coreless 7.4V 0.082sec 10.5kg (Black/Red/Violet)

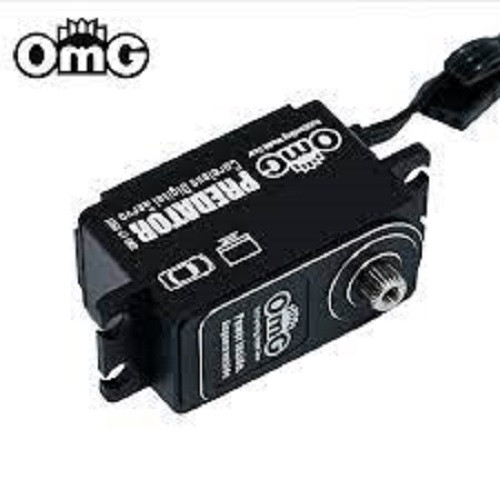

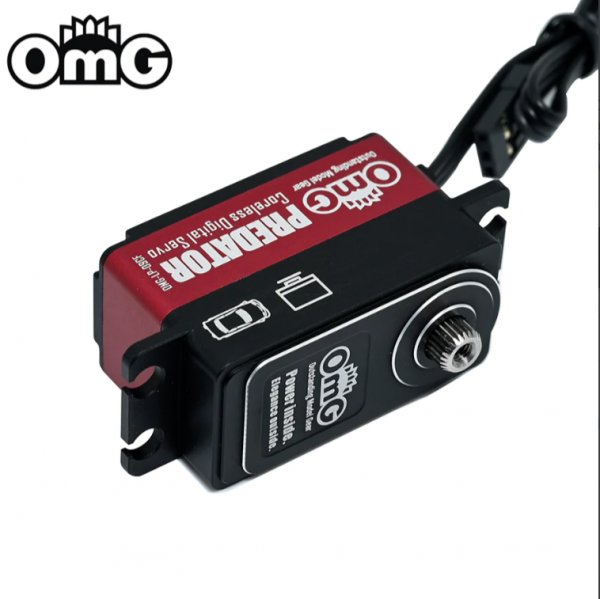

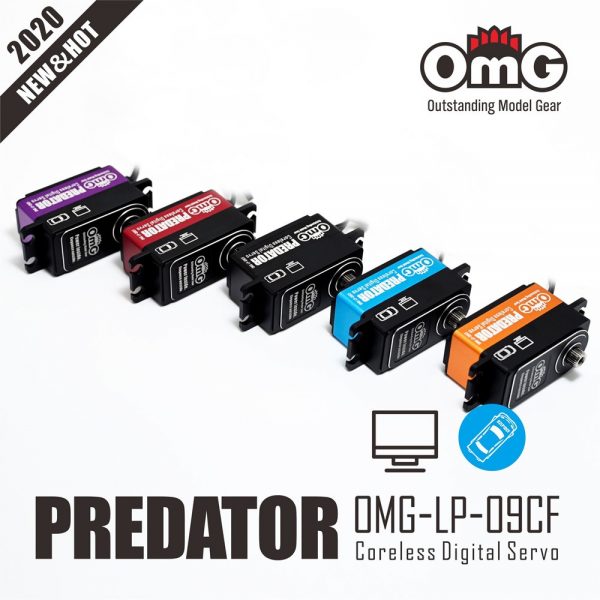

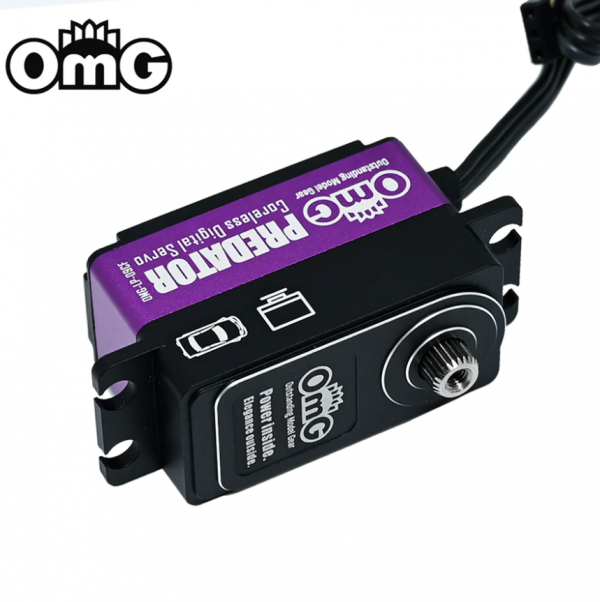

The OMG Predator Coreless Digital Servo is a low profile, full metal, steel gear, coreless motor high voltage servo, programmable and available in multiple colors.

Technical Details

  • Operating voltage:6.0-7.4V
  • Operating speed:  6.0V-0.085sec/60'
  • 7.4V-0.082sec/60'
  • Dynamic torque:
    • 7.4V-9.7kg-cm
    • 8.4V-10.5kg-cm
  • Horn gear spline:25T
  • Size: 41×20.5x26mm
  • Weight:55g
  • Limit angle:180±10°(500-2500μsec)
  • Rotating direction:180°(1000-2000μsec)
  • Operating travel :220
  • Neutral position :1520μsec
  • Maximum:≈180°(500-2500μsec)
  • Pules width range :500-2500μsec
  • Dead band width:2μsec
  • Connector wire length:200 mm
Weight 0.40 kg
Dimensions 25.00 × 25.00 × 20.00 cm
Color

Black, Red, VIOLET
