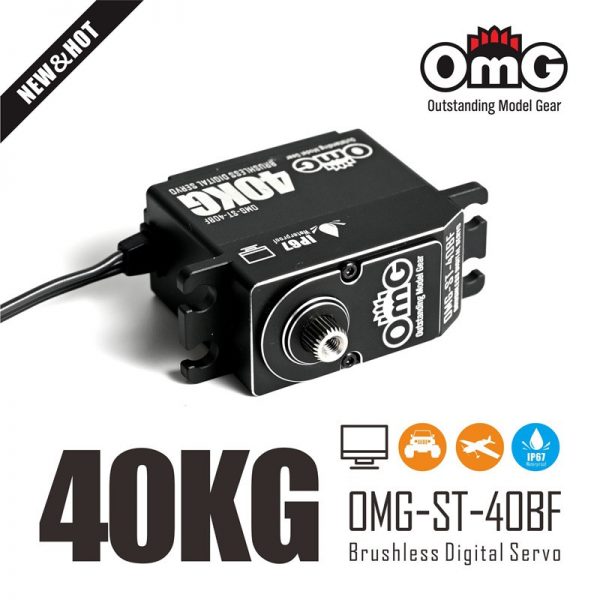

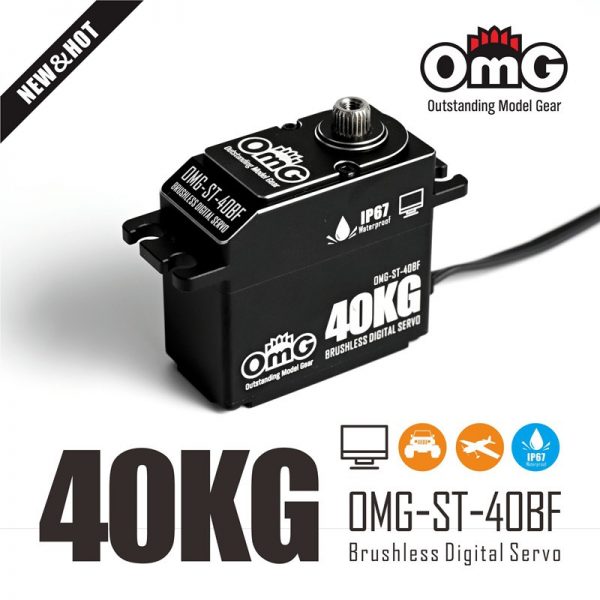

OMG ST-40BF 3BB Programmable IP67 8.4V 0.065s 40kg
Special desgin for 1:8 RC Vehicle and above 60CC large plane. Standard size full metal brushless motor high voltage servo, full case in CNC precise engraving, matte cover, full steel gear,add PIN 2.0mm at Riveting point ,better in collision avoidance , waterproof, grogrammable. Competition Class Servo.
Item No. OMG-ST-40BF
Operating speed:
7.4V-0.078sec/60°
8.4V-0.065sec/60°
Stall torque:
7.4V-38kgf.cm(528on-in)
8.4V-40kgf.cm(556on-in)
Gear Material:Stainless steel
Horn gear spline:25T Φ5.9
Size:40x20x38mm(1.57×0.79×1.5in)
Case Material:Full Metal
Weight:79g
Bearing:3BB
Motor type:Brushless
Operating Temperature:-15℃~+70℃
Operating travel :≈180±10°
Frequency:1520uS
Refresh Rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:300mm
Waterproof level:IP67
Programmable:Yes
