1998 Ford Escort Custom (TT-02)
Separately Required Items
●2-Channel Transmitter
●Batteries for Transamitter
●Receiver
●Servo
●Battery pack
●Battery charger
●ESC
Custom Classic

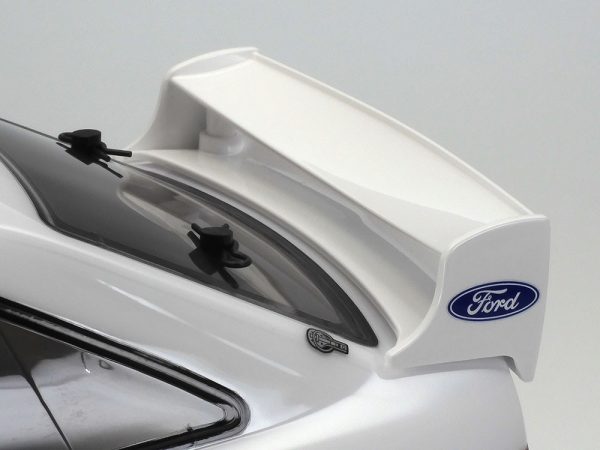

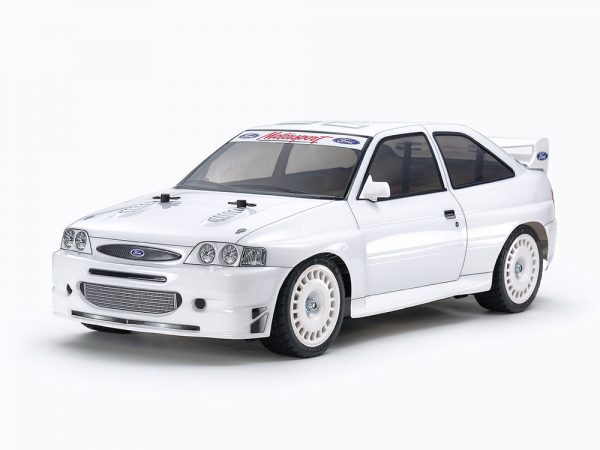

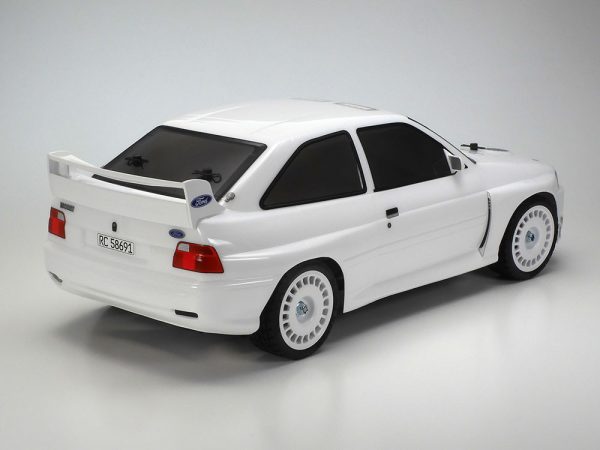

This R/C model assembly kit recreates a three-door hatchback Ford Escort Mk.6 with customizations such as blister fenders, front spoiler and rear wing. The powerful form is captured by a lightweight and durable polycarbonate body, and stickers are included to add detail. The model is based upon the adaptable and user-friendly TT-02 chassis, which offers shaft-driven 4WD.
TT-02: Adaptable, balanced shaft driven 4WD

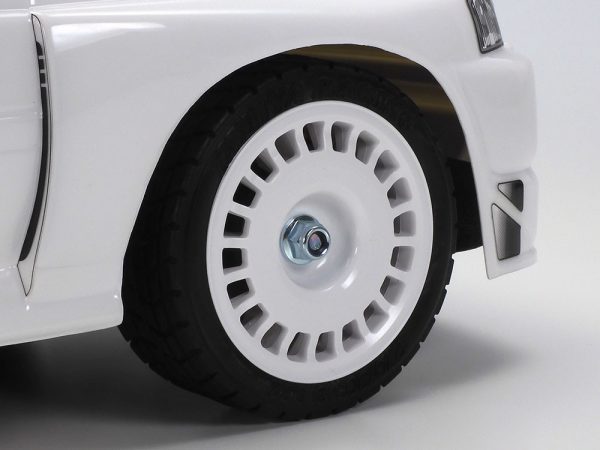

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use tread patterned semi-pneumatic tires
Specifications
★Length: 425mm, Width: 189mm, Height: 145mm
★Wheelbase: 257mm
★Tire Width/Diameter: 27/67mm (Front & Rear)
★Bathtub-type Frame
★Shaft-Driven 4WD
★Front/Rear 4-Bevel Resin Differentials
★3-Piece Steering Tie-Rod
★4-Wheel Double Wishbone Suspension
★Front/Rear Friction Dampers
★Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
★Type 540 Motor
★Electronic Speed Controller (ESC) is sold separately
