1/10 TA08 PRO Chassis Kit
Separately Required Items
★2-channel R/C system w/ESC
★R6/AA/UM3 batteries for transmitter
★Receiver
★Servo
★Type 540 motor
★Electronic Speed Controller (ESC)
★Battery pack & charger
★7.2-7.4volt battery
★Bodyshell
★Paint: Tamiya PS paint
Speedy and controllable 2 belt-driven 4WD chassis in TA series!

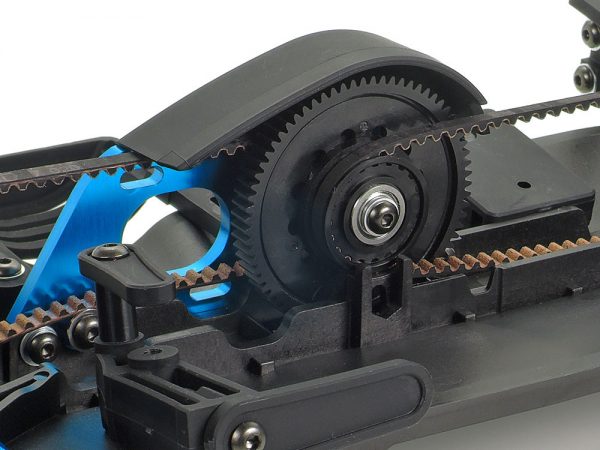

This assembly kit creates a 2-belt driven 4WD touring car chassis, which uses an SV (Stepped V) design with battery pack on the right side, and servo, receiver, and ESC on the left side, with optimum rigidity and weight distribution to minimize contact with road surfaces. Also, the spur gear is placed in front of the motor for stable handling feel. 4-wheel double wishbone suspension uses A-design upper arms which facilitate accurate layout. Ccamber and caster are adjustable, and Super Short Big Bore size dampers are included. The drivetrain uses full ball bearings, and front and rear oil gear differential units are employed.
Featured Components
●Aluminum motor mount
●Front/rear oil-filled gear differentials
●TRF420-design uprights
●Universal shafts (front: steel, rear: aluminum)
●TRF Super Short Big Bore dampers
●Hi-torque servo saver
●Floating servo mount
●Aluminum turnbuckle shafts
●Full ball bearings
Specifications
★Length: 373mm, width: 187mm
★Wheelbase: 257mm
★Stepped V carbon fiber reinforced plastic lower deck
★2-belt 4WD
★Front & rear oil-filled gear differentials
★3-piece steering tie-rod
★4-wheel independent double wishbone suspension
★TRF Super Short Big Bore dampers
