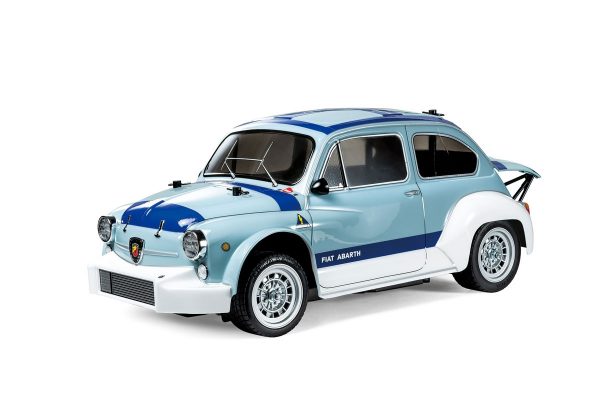

TAMIYA 58721A 1000 TCR Berlina Corse (MB-01)
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!

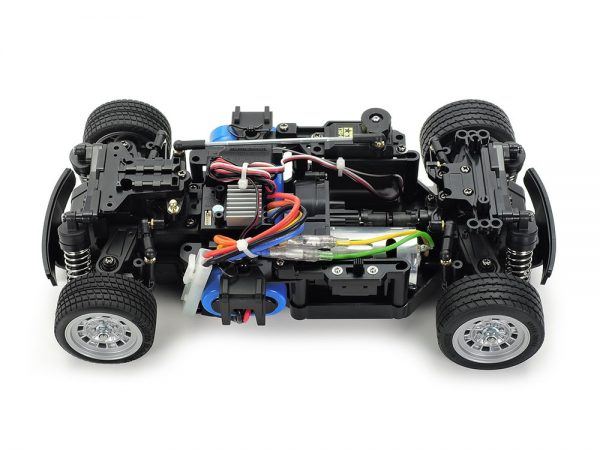

The MB-01 Chassis

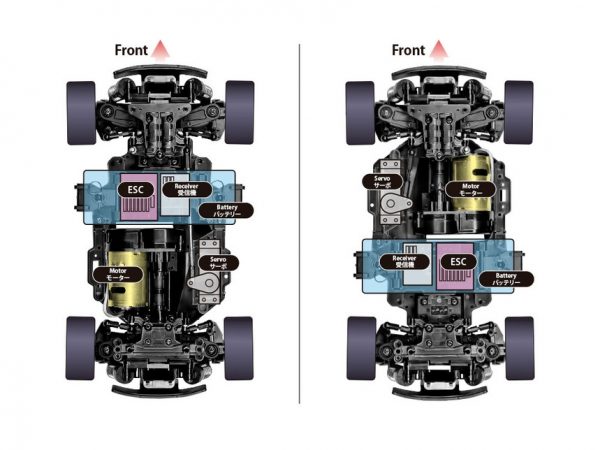

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbases, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor, and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
• Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth uses the LONG wheelbase setup).
• The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
• Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
• Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.

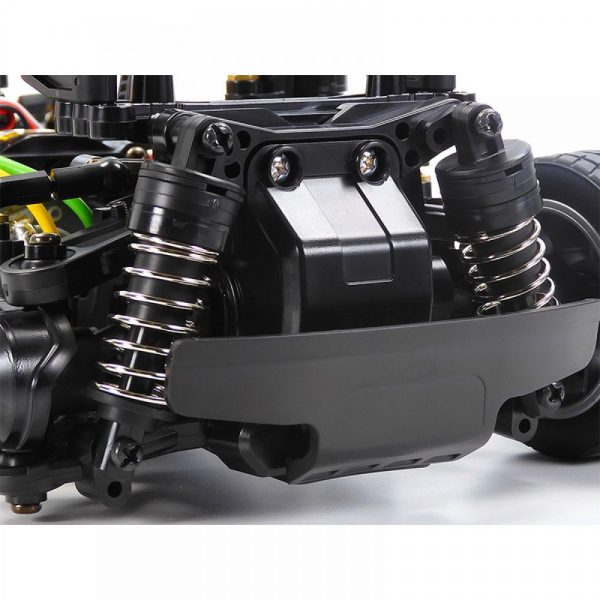

• The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
• While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
• Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)

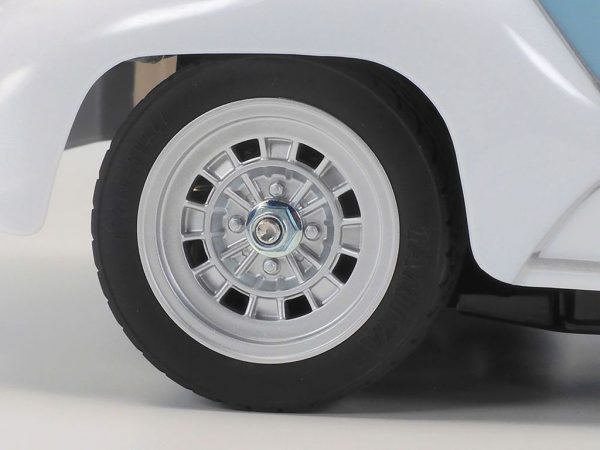

• Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
• Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
• Includes 540 motor
• Requires 2-channel radio, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete,ESC (chat us to check)
SPECIFICATIONS:-
Adjustable Gear Ratio Yes
Bearings Plastic bushing
Body Material Polycarbonate
Body Stickers Included
Chassis Material ABS Plastic
Chassis Type MB-01
Construction Type Assembly Kit
Differential Type Gear
Drive Type 2WD
Brushed Motor ESC (2-3S)
Motor 540-brushed type
Required To Complete 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
Scale 1/10,ESC (chat us to check)
Shock Damper Friction type
Suspension Fully Independent Double Wishbone
Terrain Use On-Road
