Tamiya 58726 XV-02RS PRO Chassis
Description:

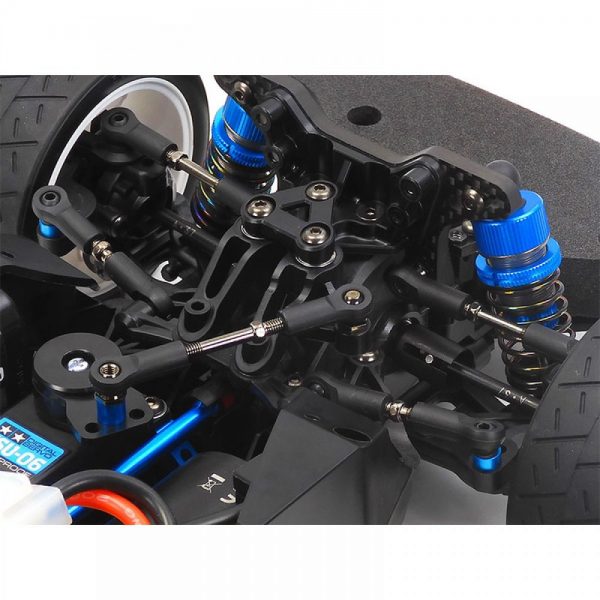

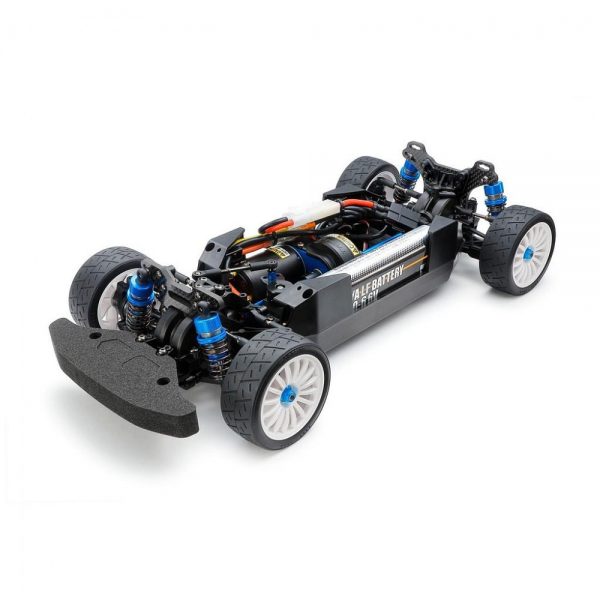

The XV-02 RS chassis is an on-road variant of the rally XV-02 platform. The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.
Feature:
-
-1/10 scale R/C chassis assembly kit.
-

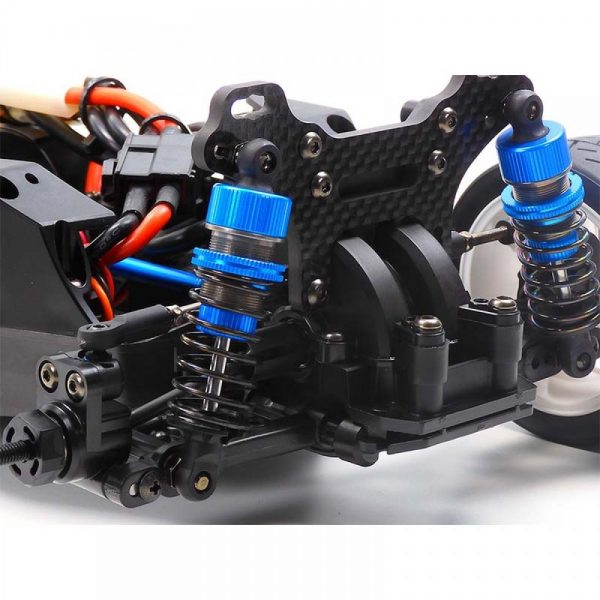

-Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.
-
-18-spoke wheels are paired with racing semi-slick tires.
-
-Equipped with front midship motor plus identical length front and rear long propeller shafts.
-
-Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
-
-Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.
-

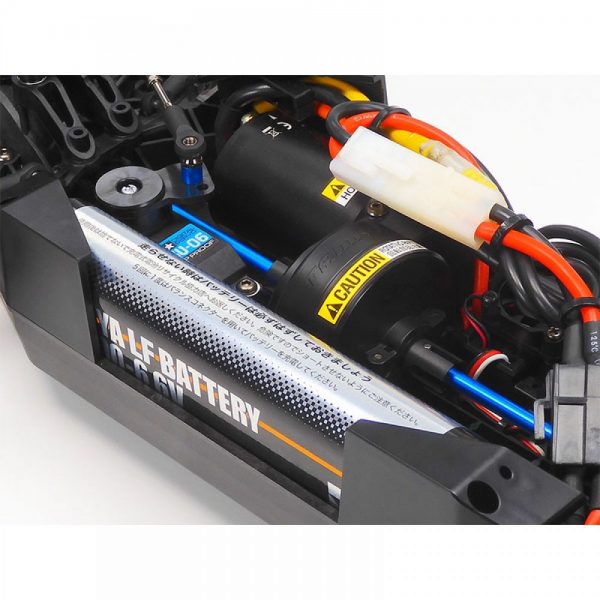

-A longitudinal battery pack is positioned in the center-left for optimum balance.
-
-The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.
-

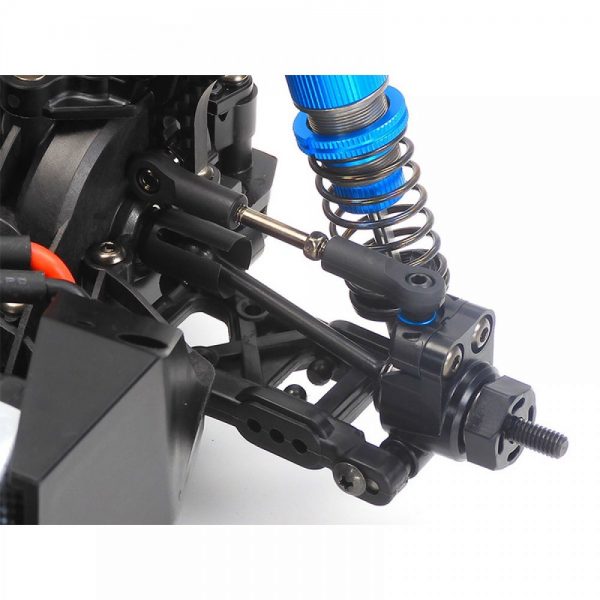

-Caster blocks feature an angle of six degrees.
-

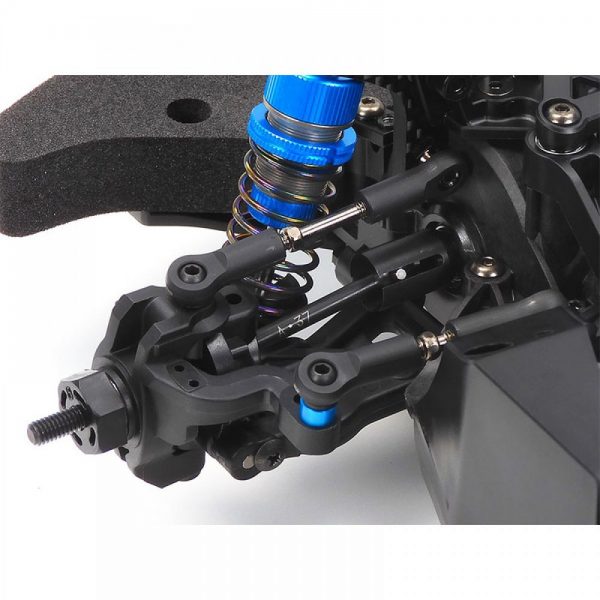

-Includes front and rear universal drive shafts, and an aluminum servo mount.
Include:
-
-Tamiya 1/10 XV-02RS Pro Chassis Kit EP (1 Set)
Required:
-
-2-channel radio & Receiver
-
-Steering servo
-
-ESC
-
-7.2-7.4volt battery pack Compatible charger
-
-540 Motor
-
-190mm Body Set
-
-Tamiya PS paint
-
-Tool
