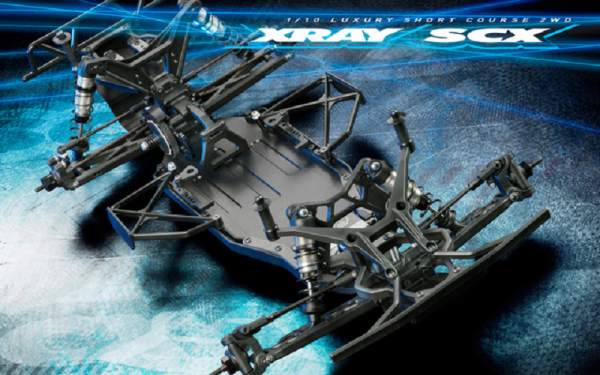

XRay 320301 XRAY SCX'23 – 2WD 1/10 ELECTRIC SHORT COURSE TRUCK
1:10 2WD Short Course car kit.
The features:
– alu lower deck

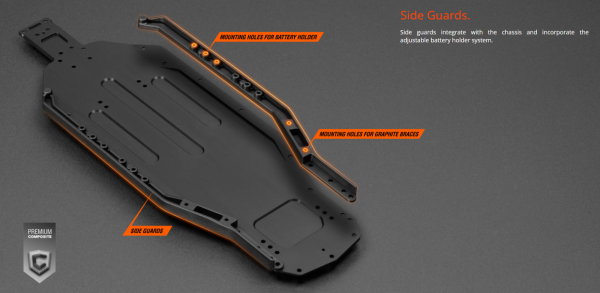

– composite side guards
– graphite side guard braces
– rear bumper

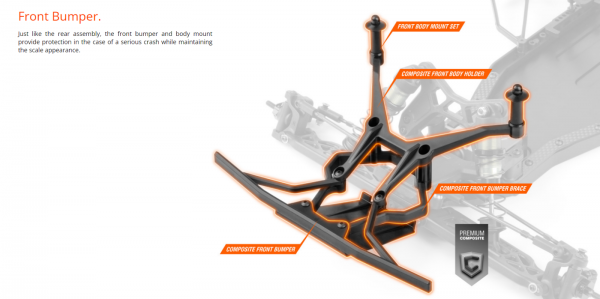

– front bumper
– side bumper braces
– tweak free battery holder for shorty batteries
– LCG gearbox
– diff height adjustment
– easy diff access
– motor mount brace
– gear differential
– 3-pad slipper clutch
– alu motor plate
– dual arm steering system
– rollcenter holder
– spring steel drive shafts
– rear uprights
– composite shock towers
– alu suspension holders
– composite suspension arms
– 12mm hex wheel hubs
– composite steering blocks with graphite extensions
– alu shocks
– 78T / 48dp spur gear included

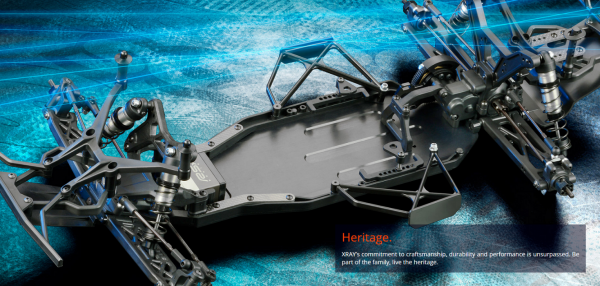

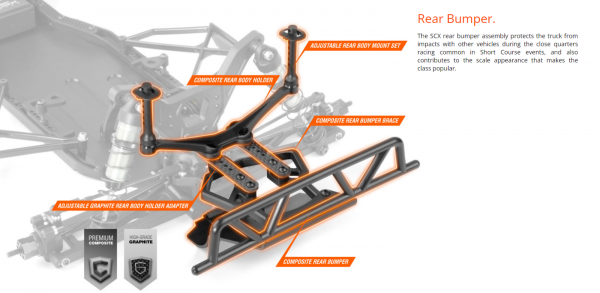

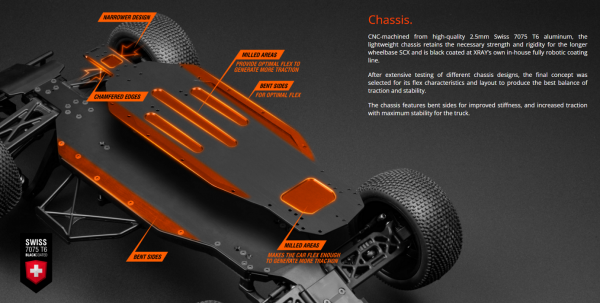

The XRAY SCX 2023 1/10 Electric 2WD Short Course Truck Kit is a dynamic and competent entry into the 1/10 scale 2wd short-course truck category. Based on the XRAY XT2 truck platform, the backbone of the car is the CNC-machined 2.5mm Swiss 7075 T6 aluminum chassis. Super lightweight, it retains the necessary strength and rigidity for the longer wheelbase SCX and is black coated at Xray’s own in-house fully robotic coating line. As is necessary in the SC class the front and rear bumper assemblies protects the truck from impacts with other vehicles during the close quarters racing common in Short Course events, while the side bumper braces provide support to the body in case of an impact and help protect the chassis. A tweak-free fully adjustable battery holder as well as simple battery installation through the smart quick-release system, the car utilizes a LCG transmission that uses a super-narrow, ultra-low CG gear box with quick & easy diff access with the narrow design of the LCG gear box, reducing weight and moving all parts closer to the chassis center line. This kit is a great way to build your Short Course Truck from the ground up, with XRAY's proven materials and quality craftmanship.

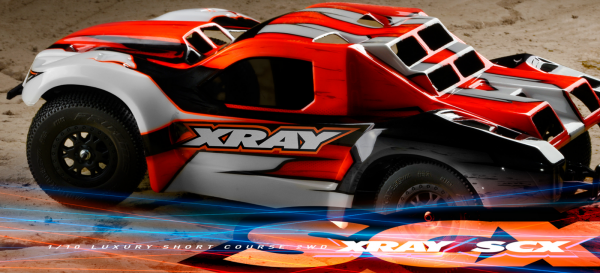

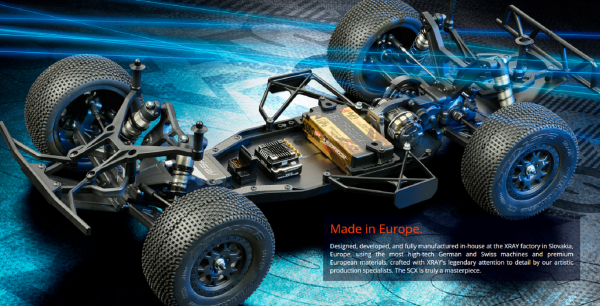

NOTE: Completed kit shown in photos is for illustrative purposes only. The model you will receive is a kit that requires assembly and accessories. See needed to complete list below for a full list of items required to complete the model.
Dimensions:
Scale – 1/10
Wheelbase: 310-350mm, adjustable
Width: 280-310mm, depending on the uses wheels
Length: 550mm
