XRay 330017 XRAY NT1'23 – 1/10 LUXURY NITRO TC
Description:

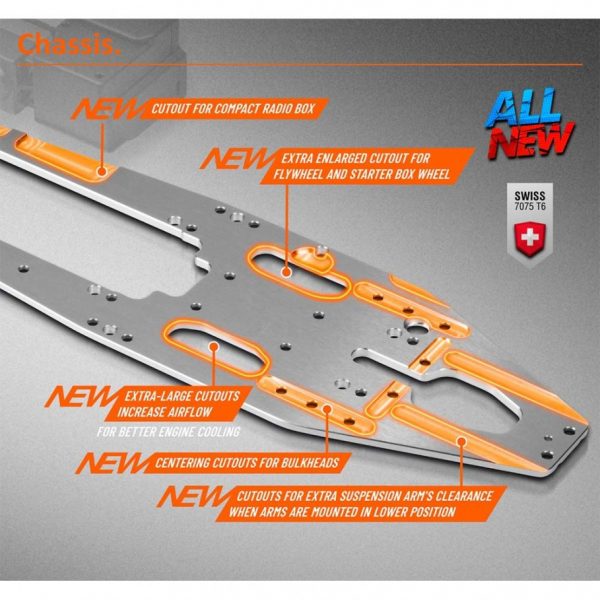

This is Xray 1/10 NT1 2023 Specs 4WD Luxury Nitro Touring Car GP. New chassis with narrowed front suspension pivots increases stability & traction. The servo saver mounting location includes a key lock system for improved reliability. The rear of the chassis has a larger opening for extra engine cooling and better flywheel access. The front of the chassis has an additional mounting hole for weight installment to secure the weight as low as possible. The lightweight chassis is CNC-machined from premium Swiss 7075 T6 aluminum, strategically machined in low-stress areas to make it as light as possible without adversely affecting strength or rigidity.
Hard composite suspension arms are now included for improved handling. The NT1 suspension arms are the result of long-term testing of different designs and layouts. Length, thickness, flexibility, geometry of suspension points and materials used… these are all the concepts and details that had to be thoroughly reviewed to create optimal suspension arms. The exclusive composite mixture used for suspension arms is a perfect balance between reliability and performance. The suspension arm itself is rigid enough to provide a responsive feel, yet soft enough to provide extreme durability.
Feature:
-
All-new chassis with narrowed front suspension pivots increases stability & traction
-

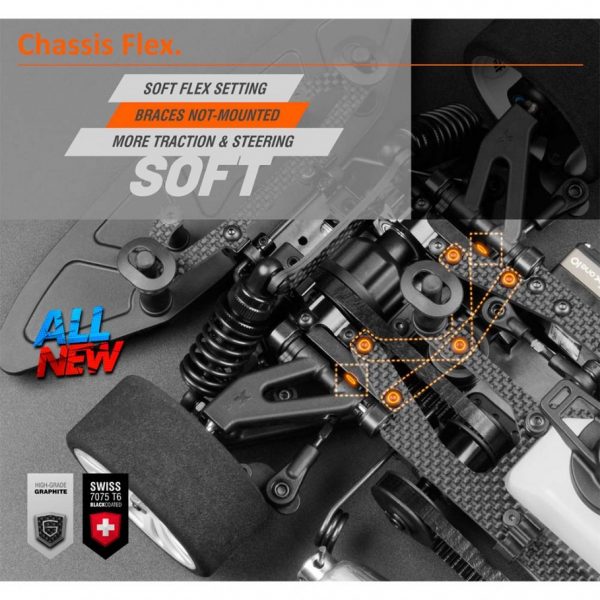

Hard composite suspension arms combined with the improved central chassis flex keeps the suspension geometry stable while the flex is transferred through chassis and radio plate to maintain traction
-
Narrower front and rear suspension holders for improved traction and stability
-
Lower down-stop mounting holders without the eccentric geometry make the car easier to set suspension down-stops
-
All-new front aluminum bulkheads accommodate new upper arm holder with adjustable flex
-
Redesigned front upper arm holder features new roll center positions in all 9 positions
-

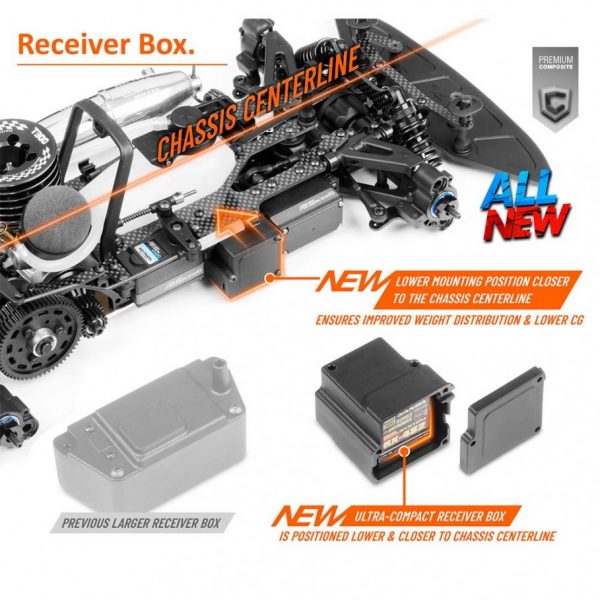

Ultra-compact and super lightweight receiver box moves the weight lower and closer to the center of the chassis
-

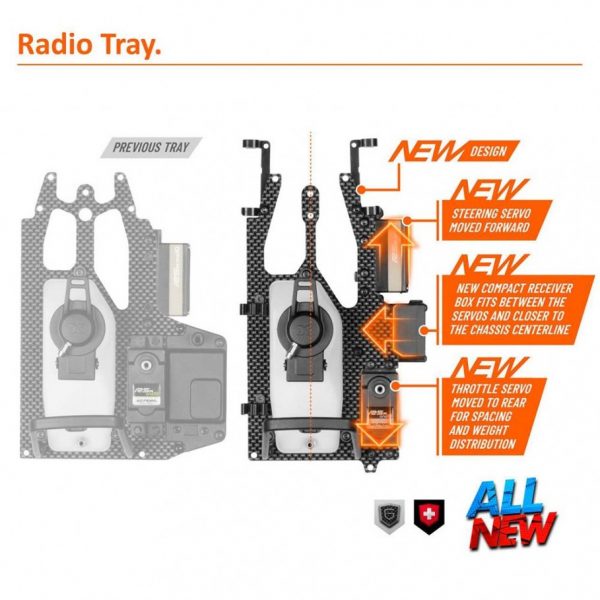

Radio plate with new servo holders moves the throttle servo more rearwards, the steering servo more frontwards and receiver box with a more central location
-
Servo saver stand with key lock design
-
Fuel tube holders are mounted directly on the radio tray for a clean installation
-
Simplified aluminum 2-speed shaft holders eliminate unnecessary braces to make the chassis more flexible, while the wider positioning provide improved support for the 2 speed shaft
-
Pulley collar is optimized for the fixed position of the pulley on the 2-speed shaft
-
New rear aluminum bulkheads have a 2mm front/rear wheelbase adjustment for easy traction tuning depending on the track conditions. Front position more traction, rear position more stability
-
Longer rear suspension pins for wide range of wheelbase adjustment
-
Both redesigned rear suspension holders and milled pockets in the chassis plate reduce the lowest pin position to generate more traction when needed
-
Anti-roll bar bearing bushings front and rear for different thickness of anti-roll bars
-
New redesigned rear anti-roll bar wire to accommodate narrower suspension and new shape eliminates any collision
-
Redesigned front anti-roll bar collar to eliminate any collisions
-
2-speed shaft adapter for rear belt pulley uses longer pins for brake disk for increased reliability
-
Included ultra-stabile clutch spring for more reliable clutch setting
-
New guide pins provide smooth movement of the brake pads
-
Longer front lower pivot balls account for the narrower front suspension pivot to maintain necessary width adjustments
-
Graphite rear roll-center bridge is simplified and features more clearance above the rear belt with optimized roll center positions
-
Wider front lower bumper included in the kit for improved lower aerodynamics and improves protection of the body
Include:
-
Xray 1/10 NT1 2023 Specs 4WD Luxury Nitro Touring Car GP (1 set)
Required:
-
2-Channel Radio System
-
Steering Servo & Throttle Servo
-
Receiver Battery & Charger
-
.12 Class Rear Exhaust Engine, Pipe & Starter System
-
Tires & Wheel
-
Fuel & Fuel Bottle
-
Body & Polycarbonate Paint
